| Product name | Low-e insulated glass |
| Glass composition | Float glass, laminated glass, tempered glass,low-E glass,tinted glass etc. |
| Thickness |
1)Aluminum Strip Width:6A,9A,12A,15A,17A,19A 2)Glass Thickness:3mm -19mm Normal sizes: 4mm+6A/9A/12A+4mm; 6mm+6A/9A/12A+6mm 8mm+6A/9A/12A+8mm etc. 3) As customer's requirements. |
| Size |
1)Max size: 3000mm x 8000mm Min size:200mmx200mm 2)According to the customer requirements |
| Color |
Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue, bronze, dark gray, and golden etc. |
| Shape | 1)semi-circle 2)rectangle 3)arch 4)special shape |
| Filled Gas | 1) air 2) vacuum 3) argon, etc. |
| Application |
1)Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements. 2)For use in airport control towers, train windows and other environments that need regulated Airports and buildings near highways and railways, that require sound insulation properties. |
(1)Saving energy: Insulated glass has good thermal insulation and heat-shielding performance, so it is an ideal material of energy and environmental protection;
(2)Good lighting: For insulated glass, the visible light transmittance is high, so low-e insulated glass has good lighting effect;
(3)Stable chemical property: It is possible for long term storage and the general insulated glass can be arbitrarily deep-processed.

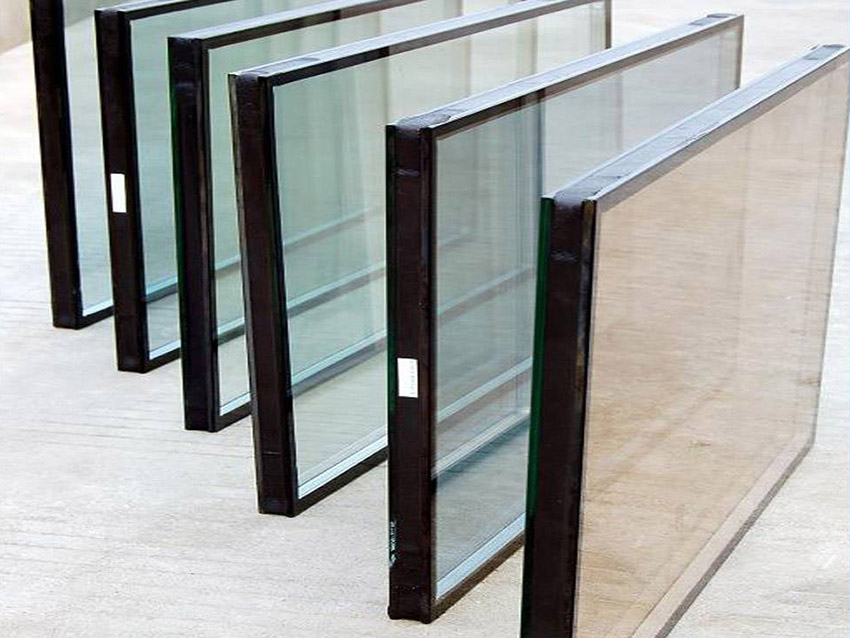

Advantages of Insulated glassThe Insulated glass is a prefabricated unit made of two or more glass panes, which have been separated by an air gap and edge_sealed together. This edge seal not only binds the individual sheets of glass together to maintain the mechanical strength of the joint but also protects the space between the glass from outside influences. The air enclosed between the two glass panes is dried with a desiccant. Because of the low heat conductivity of the enclosed dry air between the glass panes, heat transmission through the window is drastically reduced. Tempered, Laminated, reflective, low-E, tinted or clear glass can be used.
